Product Name:	Pneumatic Three-way butterfly valve
Valve Body Material:	SS304/316L
Seal Material:	EPDM (standard) FPM/SILICON/NBR, FDA177.2600
Pressure:	Vacuum to 10Bar
Temperature:	-20 degree to 130 degree,depending on the seal material
Available size:	1''-64', DN25-DN100
Available connection:	Clamp/welding/thread/special connection
Available standard:	3A/DIN/SMS/RJT/ISO/IDF
Operated:	Manual,Pneumatic, Electric
Handle application:	Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle
Control:	Smart valve positioner / C-TOP control / position sensor
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO
Application scope:	Dairy,food, beverage, pharmacy, cosmetic, etc
Structure:	3 ports with 1 handle
Feature:	The valve body of various connections could be displaced.

Drawing

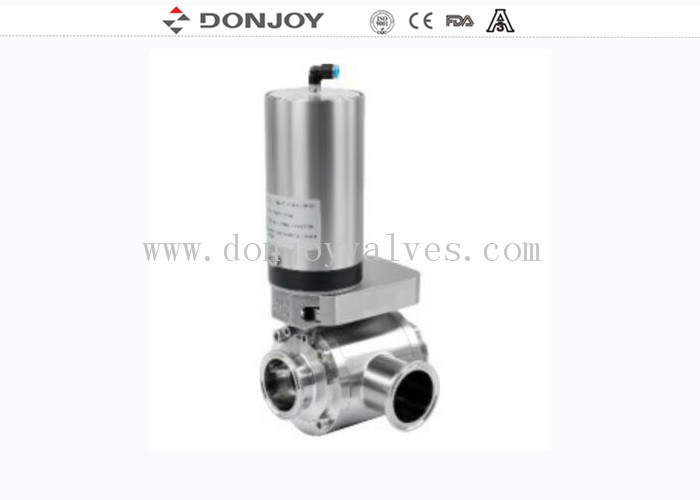

Manual SS316L DN50 Pneumatic 3 Way Butterfly Valves 0

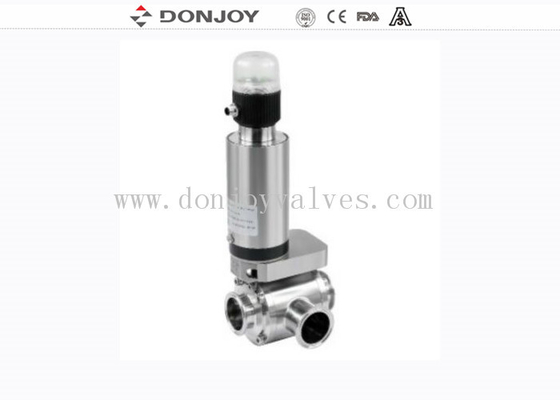

Manual SS316L DN50 Pneumatic 3 Way Butterfly Valves 1

Manual SS316L DN50 Pneumatic 3 Way Butterfly Valves 2

Type

1.Manual three way butterfly valve

2.Pneumatic three way butterfly valve

3.Pneumatic three way butterfly valve+feedback device

4.Pneumatic three way butterfly valve+controller

5.Pneumatic three way butterfly valve + valve positioner

Synchronous three-way butterfly valve:

One drive device can realize L type and T type three-way applications, opening and closing synchronization, low torque,long life, non-retention,

no dean angles, very flexible function combination,and it is efficient, economical and simple

Asynchronous three way butterfly valve:

Multiple drive devices,each drive independently and freely control the valve

Connection
Clamped, welded and threaded etc.
Packaging Details
Bubble pack for each valve.
Outside packing is carton or plywood cases.
Or as per the request of customers.

Delivery details
Usually within 20 days after receiving T/T down payment.

Description
Please check the picture below for detailed information.

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in a plywood case or carton package for small parts.
If delivery by sea,the package is wooden box.

Q2. What is your terms of payment?
A: T/T in advance, 30% as deposit, and finish 70% balance payment before delivery

T/T in advance, 50% as deposit, and finish 50% balance payment before delivery

100% TT in advance

Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 3 to 40 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.

Q6.Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Manual SS316L DN50 Pneumatic 3 Way Butterfly Valves 3

Manual SS316L DN50 Pneumatic 3 Way Butterfly Valves 4

Manual SS316L DN50 Pneumatic 3 Way Butterfly Valves 5
